Power Window Control Head In Driver Door -E512-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and remove the key.
-- Remove the armrest, refer to FRONT ARMREST, REMOVING AND INSTALLING .

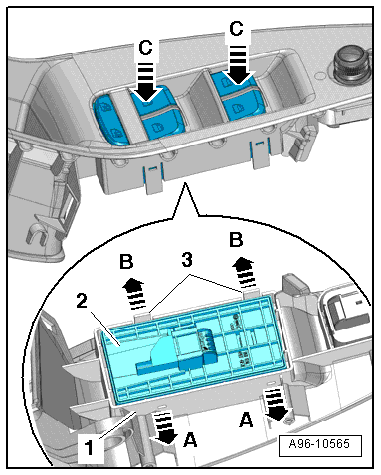

-- Release the hooks with a small screwdriver -arrows A-.
-- Carefully open the tabs -3- to the side -arrows B-.
-- Press the window regulator switch -2- out of the switch mount -1- -arrows C-.
