Left/Right Rear Seat Heating Button -E737- / -E738-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and remove the key.
-- Remove the rear vent, refer to Center Console .

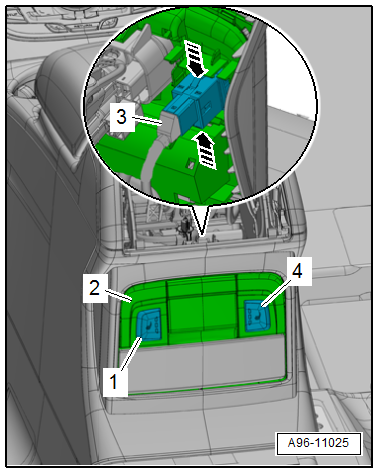

-- Reach through the opening and remove the buttons -1 and 4- from the center console rear trim -2-. The retaining clips will release while doing this -arrows-.
-- Disconnect the connector -3-.
