Headlamp Range Control Adjuster -E102-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and remove the key.
-- Remove the driver side instrument panel cover, refer to Storage Compartments and Covers .

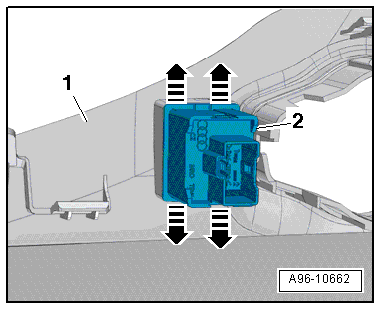

-- Carefully release the hooks -arrows- with a small screwdriver.
-- Push the Headlamp Range Control Adjuster -E102- -2- out of the driver side instrument panel -1-.
