Emergency Flasher Button -E229-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and remove the key.
-- Pry off the cover for the -1- MMI screen on the corners using the Trim Removal Wedge 3409 -arrow-.
-- Disconnect the connector and remove the MMI screen cover.

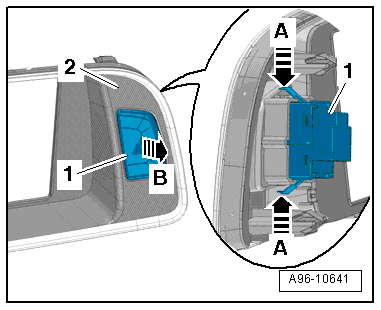

-- Release the clips -arrows A- and push the Emergency Flasher Button -E229- -1- out from the MMI screen cover -2- -arrow B-.
