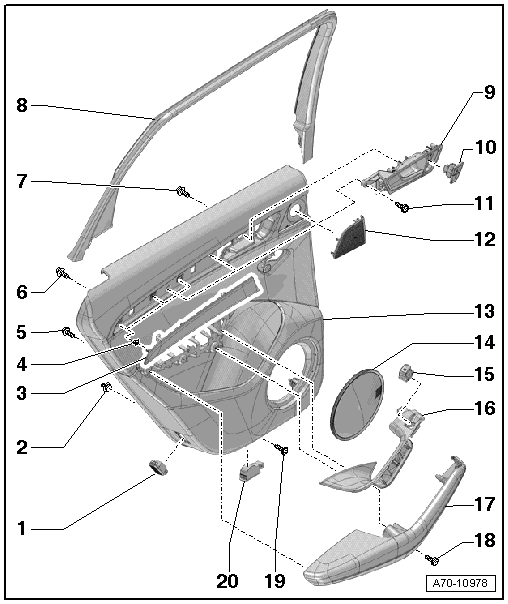

Overview - Rear Door Trim Panel
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The rear left door panel is illustrated.
- Active or Passive Rear Reflector
- Equipment levels
- Clip
- With seal
- For door trim
- Quantity: 7
- Trim Molding
- For door trim
- Removing and installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING .
- Bracket
- For trim panel
- Quantity: 3
- Press into the door trim
- Bolt
- 1.2 Nm
- For armrest
- Quantity: 7
- Bolt
- 1.2 Nm
- For pull handle
- Quantity: 2
- Bolt
- 1.2 Nm
- For inside door release mechanism
- Quantity: 4
- Trim Panel
- For the window frame
- Removing and installing. Refer to WINDOW FRAME TRIM, REMOVING AND INSTALLING .
- Interior Door Mechanism
- Removing and installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
- Rear Interior Locking Button
- Equipment levels
- Driver side: Left Rear Interior Locking Button -E310-
- Front passenger side: Right Rear Interior Locking Button -E311-
- Removing and Installing. Refer to Controls .
- Bolt
- 2.5 Nm
- For door trim
- Quantity: 2
- Trim
- For high range speaker
- Removing and installing. Refer to TREBLE SPEAKER TRIM, REMOVING AND INSTALLING .
- Rear Door Trim Panel
- Removing and installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Speaker Trim
- For mid range speaker
- Equipment levels
- Removing and installing. Refer to MID-RANGE SPEAKER TRIM, REMOVING AND INSTALLING .
- Power Window Switch in the Rear Door
- Driver side: Left Rear Power Window Switch in Left Rear Door -E52-
- Front passenger side: Right Rear Window Switch in Right Rear Door -E54-
- Removing and Installing. Refer to Controls .
- Pull Handle
- Removing and installing. Refer to REAR PULL HANDLE, REMOVING AND INSTALLING .
- Armrest
- Removing and installing. Refer to REAR ARMREST, REMOVING AND INSTALLING .
- Bolt
- for door trim
- 2.5 Nm
- Bolt
- For door trim
- 2.5 Nm
- Entry Lamp
- Equipment levels
- Removing and installing. Refer to Lamps .
- Clip for the pull handle
- Bolt - 2.5 Nm
