B-Pillar Trim Panel, Removing And Installing, Lower B-Pillar Trim Panel: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the upper B-pillar trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING, UPPER B-PILLAR TRIM PANEL .
-- Unclip the front sill panel trim near the lower B-pillar trim. Refer to SILL PANEL STRIP, REMOVING AND INSTALLING, FRONT SILL PANEL .

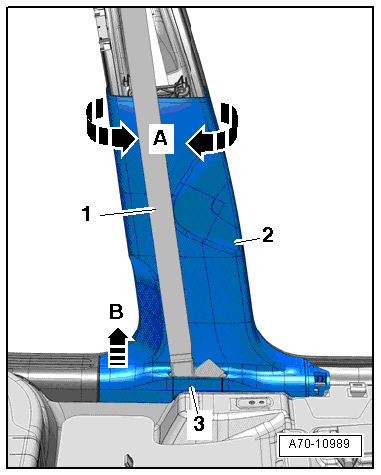

-- Starting at the top, unclip the lower B-pillar trim -2- from the B-pillar -arrows A- using the Pry Lever 80-200.
-- Unclip and remove the lower B-pillar trim from the sill -arrow B-.
-- Open the flap -3- and remove the seat belt webbing -1-.
