Spare Wheel Well Trim, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the gap cover. Refer to GAP COVER, REMOVING AND INSTALLING .
-- Remove the rear cross panel trim. Refer to LOCK CARRIER TRIM, REMOVING AND INSTALLING, NON-HYBRID VEHICLES .
-- If equipped, remove the subwoofer. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .

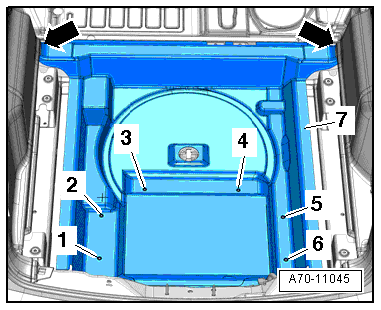

-- Remove the clips -1 to 6- with the Pry Lever 80-200.
-- Remove the trim panel -7- for the spare wheel well under the luggage compartment side trim panels -arrows-.
