Rear Lid Remote Unlock Switch -E188- TRIM, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the driver front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

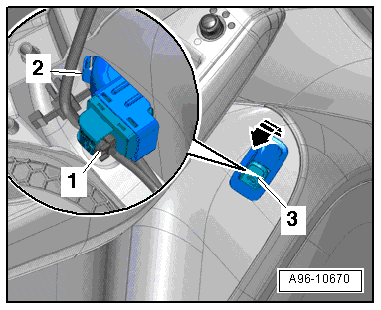

-- Disconnect electrical connector -1- on the rear lid remote unlock switch.
-- Release clips -2- and push trim -3- together with the rear lid remote unlock switch from the door trim -arrow-.
-- Remove the rear lid remote unlock switch from the trim. Refer to Controls .
