Fuse Panel F -SF- IN RIGHT LUGGAGE COMPARTMENT, REMOVING AND INSTALLING: Installing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Tightening specification, refer to OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .
Install in reverse order of removal. Note the following:

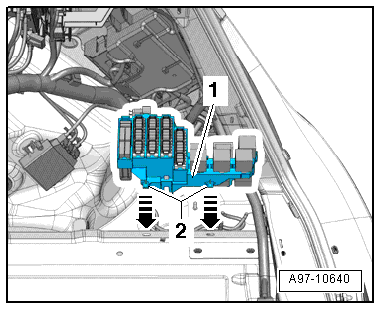

-- Insert the Fuse Panel F -SF- -1-, making sure the guides -2- are inserted in the mounts correctly -arrows-.
-- Connect the battery. Take the necessary precautions, refer to BATTERY, DISCONNECTING AND CONNECTING . Vehicles with a high voltage system, refer to Battery -A- AND Auxiliary Battery -A1-, DISCONNECTING AND CONNECTING, VEHICLES WITH HIGH VOLTAGE SYSTEM .
