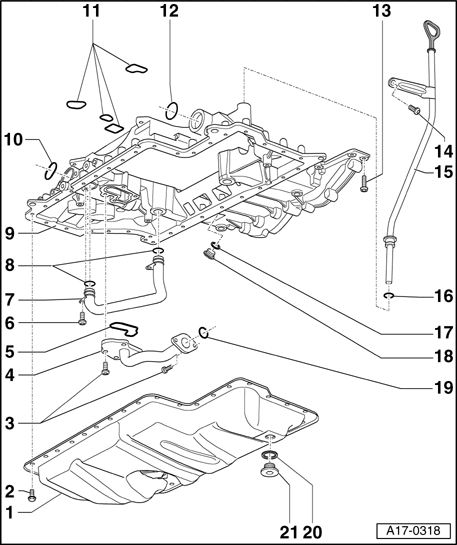

Upper section of oil pan, component overview
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Audi S4, 2008 Audi S4, 2007 Audi S4, 2006 Audi S4, and 2005 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Oil pan (lower section)
- Removing and installing → Oil pan (lower part), removing and installing
- With Oil Level Thermal Sensor G266
- Oil Level Thermal Sensor G266 , removing and installing , removing and installing under Oil Level Thermal Sensor G266 , removing and installing
2 - 10 Nm
3 - 10 Nm
4 - Oil pipe
5 - Gasket
- Replace
6 - 10 Nm
7 - Oil pipe
8 - O-rings
- Replace
9 - Oil pan (upper section)
- Removing and installing → Oil pan (upper part), removing and installing
10 - Seal
- Replace
11 - Gasket
- Replace
12 - O-ring
- Replace
13 - 15 Nm
14 - 10 Nm
15 - Guide tube for oil dipstick
16 - O-ring
- Replace
17 - Seal
- Replace
18 - Locking bolt - 35 Nm
19 - O-ring
- Replace
20 - Seal
- Replace
21 - Oil drain plug - 50 Nm
