Ribbed belt drive for generator, component overview

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Audi S4, 2008 Audi S4, 2007 Audi S4, 2006 Audi S4, and 2005 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

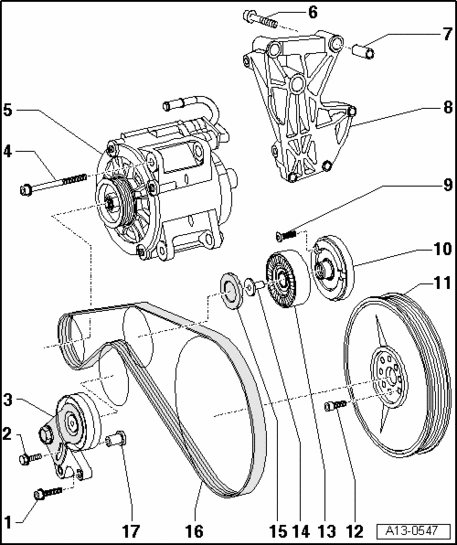

Fig 1: Ribbed Belt Drive For Generator, Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 22 Nm

2 - 22 Nm

3 - Ribbed belt tensioner

4 - 22 Nm

5 - Generator

Removing and installing →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT, CABRIOLET

6 - M8 - 22 Nm; M10 - 46 Nm

7 - Alignment bushing

For generator bracket
2 pieces

8 - Generator bracket

9 - 10 Nm

10 - Idler roller holder

11 - Vibration damper

Removing and installing → Vibration damper, removing and installing

12 - 22 Nm plus an additional 45 ° (¹ /₈ turn)

Replace

13 - Idler roller for ribbed belt

14 - 22 Nm

15 - Cover cap

16 - Ribbed belt

Check for wear
Do not kink
Before removing, mark direction of rotation using chalk or felt-tip marker. Reversing direction of rotation of a run-in belt can destroy the belt
Removing and installing → Ribbed belt, removing and installing

When installing ribbed belt, make sure it is seated correctly on pulleys

17 - Threaded bushing
