Rear Three-Point Seat Belt, Removing And Installing, Sedan: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear outer belt end fitting. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

-- Remove the rear outer belt guide. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING, SEDAN .

-- Remove the noise insulation -2- for the automatic belt retractor.

Fig 1: Identifying Rear Outer Three-Point Seat Belt, Removal

Courtesy of AUDI OF AMERICA, LLC

Versions with Rear Seat Belt Tensioner Igniter:

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .

-- Turn on the ignition.

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connector.

Fig 2: Identifying Releasing Connector Lock

Courtesy of AUDI OF AMERICA, LLC

-- To do this, release the connector lock -3- using a small screwdriver -1- and remove the electrical connector -2-.

Continuation for all vehicles:

-- Remove the 2 expanding clips for the luggage compartment side trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, SEDAN .

-- Push the upper luggage compartment side trim -4- in the area around the three-point seat belt to the side and loosen the screw -1-.

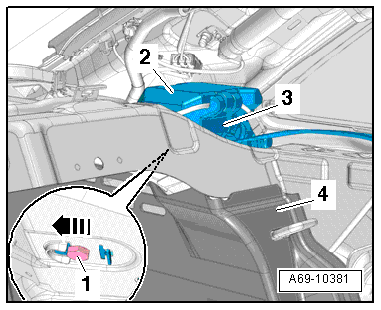

Fig 3: Identifying Rear Outer Three-Point Seat Belt, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Unhinge the three-point seat belt -3- -arrow-.
