Rear Seat Belt Latch, Removing And Installing, Left Rear Seat Belt Latch: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

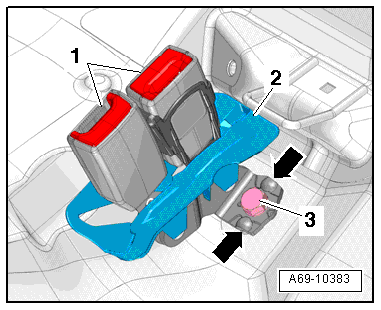

Fig 1: Identifying Rear Left Belt Latch
GWWA69-10383Courtesy of AUDI OF AMERICA, LLC

-- Remove the bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the bolt -3- and remove the belt latch -1- and cover -2-.
