Rear Seat Belt Guide, Removing And Installing, Sedan: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

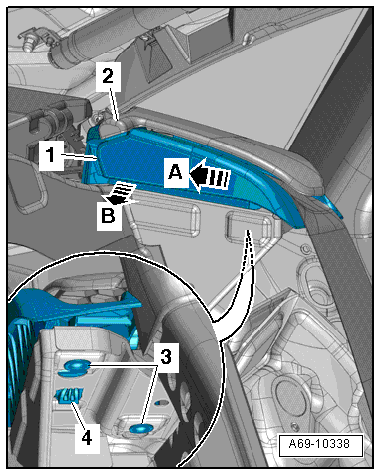

Fig 1: Identifying Rear Outer Belt Guide, Removal

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Do not rotate bolts -3- under any circumstances when removing and installing belt guide -1-. They are set by the manufacturer.
Replace the entire belt guide if damaged.

-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

-- Versions with rear side airbag: remove the rear side airbag. Refer to REAR SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

-- For vehicles with a fixed rear seat backrest: remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .

-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

-- Remove the foam piece under the belt guide.

-- Push the belt guide retaining hook -4- upward and hold it there.

-- Slide the belt guide -1- back -arrow A- until the bolt heads -3- can be disengaged from the console on the body.

-- Slightly lift the C-pillar trim -item 2- and remove the belt guide sideways toward the vehicle interior -arrow B-.

-- Rear outer right seat belt guide: Disconnect the connector from the Rear Parking Aid Warning Buzzer -H15-.
