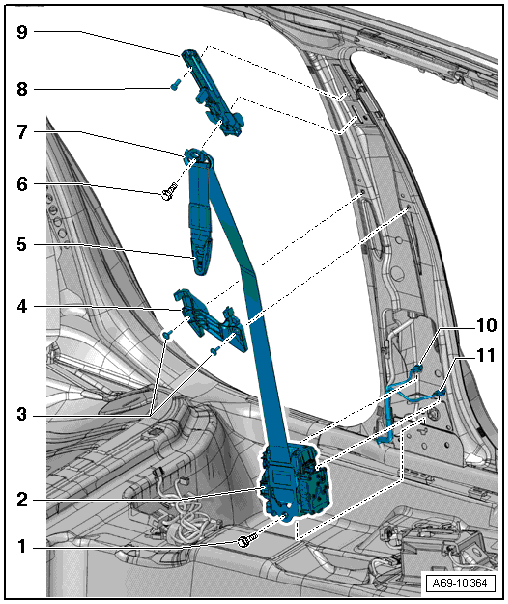

Overview - Front Three-Point Seat Belt
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Automatic Belt Retractor
- Drivers side: with Driver Seat Belt Tensioner Igniter 1 -N153- and Driver Belt Force Limiter -G551-
- Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Front Passenger Belt Force Limiter -G552-
- Removing and installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Always replace if removed
- Front Seat Belt Guide
- Removing and installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Front Belt End Fitting
- Removing and installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
- Bolt
- 45 Nm
- If it was removed because of an accident, replace the bolt
- Seat Belt Guide
- Bolt
- 27 Nm
- If it was removed because of an accident, replace the bolt
- Seat Belt Height Adjuster
- Removing and installing. Refer to SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- Always replaced if the belt tensioner has deployed with the belt on
- Connector
- For the Driver Belt Force Limiter -G551-
- For the Front Passenger Belt Force Limiter -G552-
- Disconnecting and connecting. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Connector
- For the Driver Seat Belt Tensioner Igniter 1 -N153-
- For the Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Disconnecting and connecting. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
