Component Location Overview - Passenger Occupant Detection System
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The replacement part (service kit) for the passenger occupant detection system is already precalibrated and must not be separated under any circumstances. The service kit consists of:
- Passive Occupant Detection System Control Module -J706
- Passive Occupant Detection System Pressure Sensor -G452
- Passive Occupant Detection System Mat
- Seat cushion
- Wiring harness between the passenger occupant detection system control module -J706 and passenger occupant detection system pressure sensor -G452.
WARNING:
Follow all safety precautions when working on the passenger occupant detection system, refer to PASSENGER OCCUPANT DETECTION SYSTEM DEACTIVATION ADDITIONAL SAFETY PRECAUTIONS, MARKET-SPECIFIC .
NOTE:
The passenger occupant detection system is only installed in the front passenger seat.

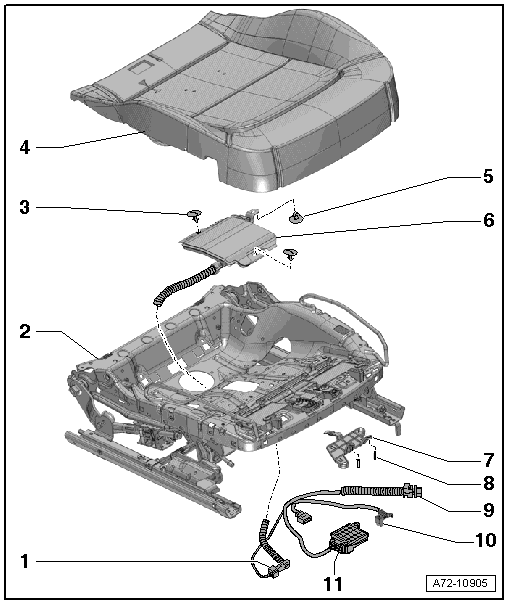

- Passenger Occupant Detection System Pressure Sensor -G452-
- Is a component of the passenger occupant detection system mat
- Removing and installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .
- Do not disconnect the electrical connector
- Seat Pan
- Retaining Clip
- Cushion
- For the lower seat frame
- Do not separate from the passenger occupant detection system mat -6-
- Retaining Clip
- Do not release.
- Mat
- For the passenger occupant detection system
- Is a component of the Passenger Occupant Detection System Pressure Sensor -G452-
- Do not separate from the lower seat frame cushion -4-
- Removing and installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .
- Mount
- For the Passenger Occupant Detection System Control Module -J706-
- Expanding Pin
- For securing the mount to the lower seat frame
- Wiring Harness
- Do not separate from the Passenger Occupant Detection System Pressure Sensor -G452- and Passenger Occupant Detection System Control Module -J706-
- Front Passenger Seat Position Sensor -G554-
- Is a component of the wiring harness -9-
- Removing and installing. Refer to SEAT POSITION SENSOR WITH PASSENGER OCCUPANT DETECTION SYSTEM FOR PASSENGER AIRBAG DEACTIVATION, REMOVING AND INSTALLING .
- Passenger Occupant Detection System Control Module -J706-
- Removing and installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .
- Do not disconnect the electrical connector
