Overview - Rear Child Seat Anchors

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The LATCH anchorage points are welded to the vehicle floor on the Avant.

Removing and installing the top tether anchor points on the Wagon is illustrated.

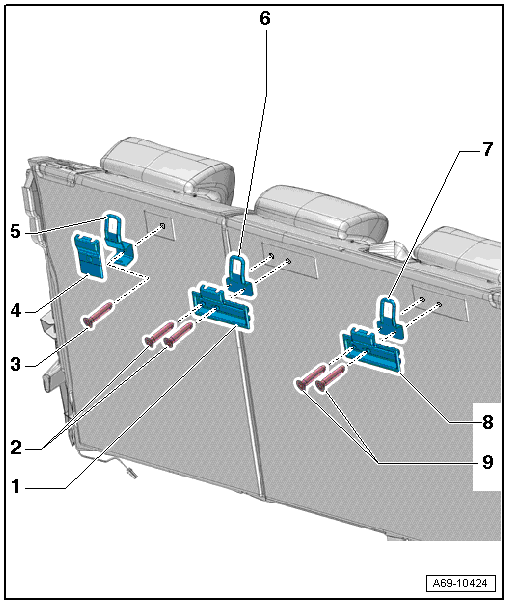

Fig 1: Overview Of Rear Child Seat Anchors (Avant)
GWWA69-10424Courtesy of AUDI OF AMERICA, LLC
  1. Bracket
    • For the screen separator wall
    • Equipment levels
  2. Bolts
    • 9 Nm
  3. Bolt
    • 9 Nm
  4. Cover
  5. Left Top Tether Retaining Bracket
  6. Center Top Tether Retaining Bracket
  7. Right Top Tether Retaining Bracket
  8. Bracket
    • For the screen separator wall
    • Equipment levels
  9. Bolts
    • 9 Nm
