Overview - Cover And Padding, Rear Seat Backrest With Rear Seat Backrest Frame Or Storage Compartment
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The illustration only shows the structure of the right 2/3 section of the rear seat backrest. The structure of the left 1/3 section of the rear seat backrest is similar.

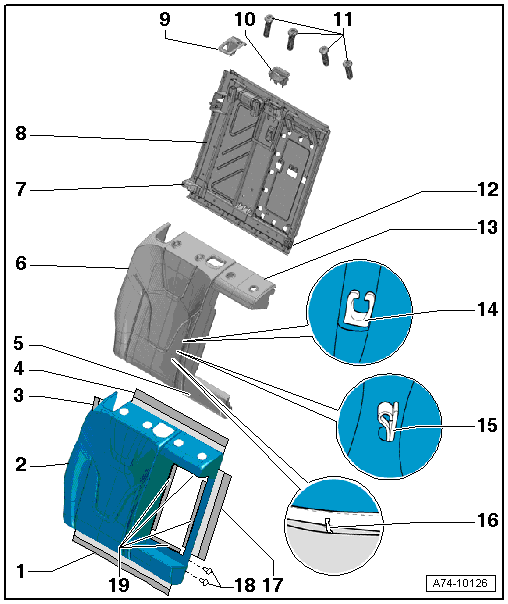

Fig 1: Overview Of Cover And Padding, Rear Seat Backrest With Rear Seat Backrest Frame Or Storage Compartment
- Molding
- Sewn into cover
- For engaging the cover in the backrest shell
- Cover
- Removing and installing. Refer to COVER AND PADDING, REMOVING AND INSTALLING, REAR SEAT BACKREST WITH REAR SEAT BACKREST FRAME OR STORAGE COMPARTMENT .
- Separate the cover from the padding. Refer to COVER AND PADDING, SEPARATING, BACKREST WITH COVER OR STORAGE COMPARTMENT
- Molding
- Sewn into cover
- For engaging the cover in the backrest shell
- Retaining Channel
- Sewn into cover
- For engaging the cover in the backrest shell
- Lower Padding
- Removing and installing. Refer to UPPER AND LOWER CUSHION, REMOVING AND INSTALLING, BACKREST WITH BACKREST BRACKET COVER OR STORAGE COMPARTMENT .
- Cushion
- Removing and installing. Refer to COVER AND PADDING, REMOVING AND INSTALLING, REAR SEAT BACKREST WITH REAR SEAT BACKREST FRAME OR STORAGE COMPARTMENT .
- Separate the cover from the padding. Refer to COVER AND PADDING, SEPARATING, BACKREST WITH COVER OR STORAGE COMPARTMENT
- Outer Bracket
- Backrest Shell
- Trim
- For locking
- Removing and installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
- Rear Center Belt Guide
- Replace the entire belt guide if damaged.
- Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING, CENTER REAR SEAT BELT GUIDE, FOLDING REAR SEAT BACKREST .
- Headrest Guide
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
- Inner Bracket
- Upper Padding
- Removing and installing. Refer to UPPER AND LOWER CUSHION, REMOVING AND INSTALLING, BACKREST WITH BACKREST BRACKET COVER OR STORAGE COMPARTMENT .
- Clip
- Covered in foam padding
- Clip
- Covered in foam padding
- Only with fabric covers
- Cushion Clip
- Only with leather covers
- For securing the cover to the padding
- Always replace if removed
- Install in same location as before removal
- Molding
- Sewn into cover
- For engaging the cover in the backrest shell
- Plugs
- For securing the cover
- Quantity: 2
- Molding
- Only on the backrest with a storage compartment or cover, right 2/3
- Sewn into cover
- For attaching the cover into the storage compartment cut-out or the backrest cover
