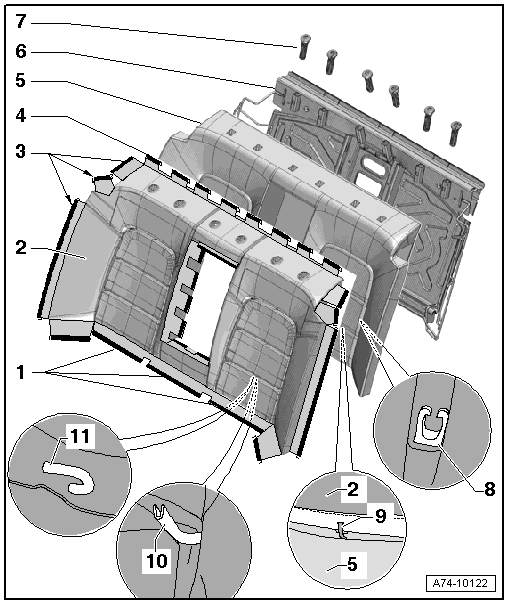

Overview - Cover And Padding, Fixed Rear Seat Backrest
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Retaining Channel
- Sewn into cover
- For engaging the cover in the seat frame
- Cover
- Removing and installing. Refer to COVER AND PADDING, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .
- Separate the cover from the padding. Refer to COVER AND PADDING, SEPARATING, BACKREST WITH COVER OR STORAGE COMPARTMENT
- Retaining Channel
- Sewn into cover
- For engaging the cover in the seat frame
- Molding
- Sewn into cover
- For engaging the cover in the seat frame
- Cushion
- Removing and installing. Refer to COVER AND PADDING, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .
- Separate the cover from the padding. Refer to COVER AND PADDING, SEPARATING, BACKREST WITH COVER OR STORAGE COMPARTMENT
- Backrest frame
- Headrest Guide
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
- Clip
- Covered in foam padding
- Cushion Clip
- Only with leather covers
- for securing the cover to the padding
- Always replace if removed
- Install in same location as before removal
- Retaining Channel
- Sewn into cover
- For securing the cover to the padding
- Contour Wire
- Pushed into the cover
