Overview - Cover And Padding, Divided Rear Seat Backrest With Pass-Through

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The illustration only shows the structure of the right 2/3 section of the rear seat backrest. The structure of the left 1/3 section of the rear seat backrest is similar.

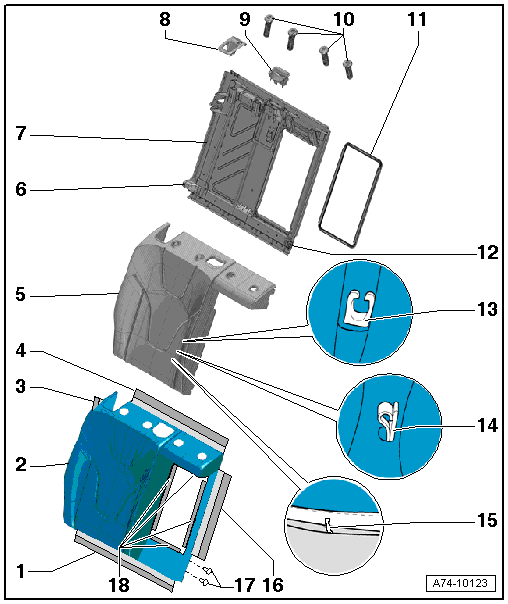

Fig 1: Overview Of Cover And Padding, Divided Rear Seat Backrest With Pass-Through

Courtesy of AUDI OF AMERICA, LLC

Molding
- Sewn into cover
- For engaging the cover in the backrest shell
Cover
- Removing and installing. Refer to BACKREST COVER AND PADDING, REMOVING AND INSTALLING, DIVIDED REAR SEAT BACKREST WITH PASS-THROUGH .
- Separate the cover from the padding. Refer to COVER AND PADDING, SEPARATING, REAR SEAT BACKREST WITH PASS-THROUGH
Molding
- Sewn into cover
- For engaging the cover in the backrest shell
Retaining Channel
- Sewn into cover
- For engaging the cover in the backrest shell
Cushion
- Removing and installing. Refer to BACKREST COVER AND PADDING, REMOVING AND INSTALLING, DIVIDED REAR SEAT BACKREST WITH PASS-THROUGH .
- Separate the cover from the padding. Refer to COVER AND PADDING, SEPARATING, REAR SEAT BACKREST WITH PASS-THROUGH
Outer Bracket
Backrest Shell
Trim
- For locking
- Removing and installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
Rear Center Belt Guide
- Replace the entire belt guide if damaged.
- Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING, CENTER REAR SEAT BELT GUIDE, FOLDING REAR SEAT BACKREST .
Headrest Guide
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
Cover Frame
- Only on the right 2/3 split backrest with pass-through
- Removing and installing. Refer to COVER FRAME, REMOVING AND INSTALLING .
Inner Bracket
Clip
- Covered in foam padding
Clip
- Covered in foam padding
- Only with fabric covers
Cushion Clip
- Only with leather covers
- For securing the cover to the padding
- Always replace if removed
- Install in same location as before removal
Molding
- Only on the right 2/3 split backrest with pass-through
- Sewn into cover
- For engaging the cover in the pass-through opening
Plugs
- For securing the cover
- Quantity: 2
Molding
- Only on the right 2/3 split backrest with pass-through
- Sewn into cover
- For engaging the cover in the pass-through opening
