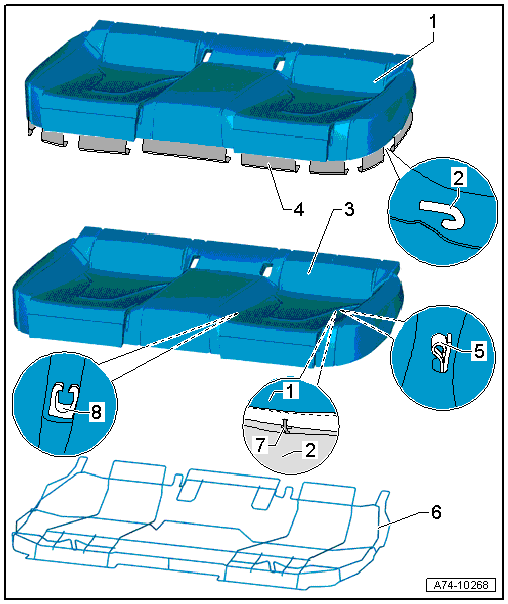

Overview - Cover And Padding, Bench Seat Without Center Storage Compartment
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Cover
- Removing and installing. Refer to COVER AND PADDING, REMOVING AND INSTALLING, BENCH SEAT WITHOUT CENTER STORAGE COMPARTMENT .
- Separate the cover from the padding. Refer to COVER AND PADDING, SEPARATING, BENCH SEAT WITHOUT CENTER STORAGE COMPARTMENT
- Contour Wire
- pushed into the cover
- Cushion
- Removing and installing. Refer to COVER AND PADDING, REMOVING AND INSTALLING, BENCH SEAT WITHOUT CENTER STORAGE COMPARTMENT .
- Separate the cover from the padding. Refer to COVER AND PADDING, SEPARATING, BENCH SEAT WITHOUT CENTER STORAGE COMPARTMENT
- Molding
- sewn into cover
- for engaging the cover in the seat bench frame
- Clip
- Covered in foam padding
- Only with fabric covers
- Seat Bench Frame
- Cushion Clip
- Only with leather covers
- For securing the cover to the padding
- Always replace if removed
- Install in same location as before removal
- Clip
- Covered in foam padding
