Overview - Cover And Padding, Bench Seat With Center Storage Compartment

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

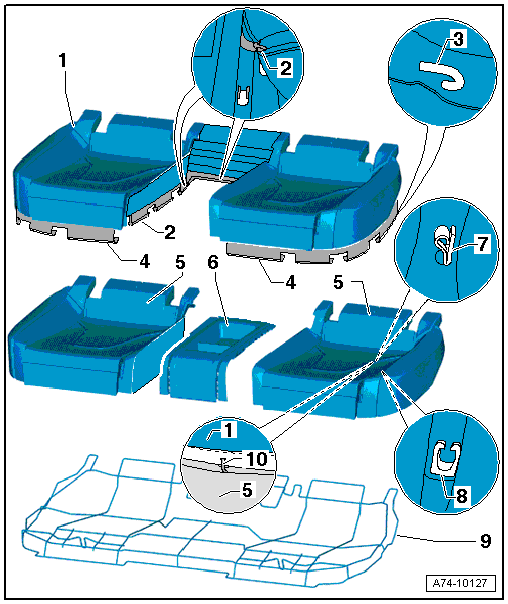

Fig 1: Overview Of Bench Seat With Center Storage Compartment

Courtesy of AUDI OF AMERICA, LLC

Cover
- Removing and installing. Refer to COVER AND PADDING, REMOVING AND INSTALLING, BENCH SEAT WITH CENTER STORAGE COMPARTMENT .
- Separate the cover from the padding. Refer to COVER AND PADDING, SEPARATING, BENCH SEAT WITH CENTER STORAGE COMPARTMENT
Molding
- sewn into cover
- for engaging the cover in the rear and side channel at the center armrest
Contour Wire
- Pushed into the cover
Molding
- Sewn into cover
- For engaging the cover in the seat bench frame
Left/Right Padding
- Removing and installing. Refer to COVER AND PADDING, REMOVING AND INSTALLING, BENCH SEAT WITH CENTER STORAGE COMPARTMENT .
- Separate the cover from the padding. Refer to COVER AND PADDING, SEPARATING, BENCH SEAT WITH CENTER STORAGE COMPARTMENT
Center Storage Compartment
- Separating the cover from the center storage compartment:
  - Right cover COVER AND PADDING, REMOVING AND INSTALLING, BENCH SEAT WITH CENTER STORAGE COMPARTMENT
  - Left cover COVER AND PADDING, REMOVING AND INSTALLING, BENCH SEAT WITH CENTER STORAGE COMPARTMENT
- Removing and installing. Refer to CENTER STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Clip
- Covered in foam padding
- Only with fabric covers
Clip
- Covered in foam padding
Seat Bench Frame
Cushion Clip
- Only with leather covers
- For securing the cover to the padding
- Always replace if removed
- Install in same location as before removal
