Cover And Padding, Removing And Installing, Fixed Rear Seat Backrest: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

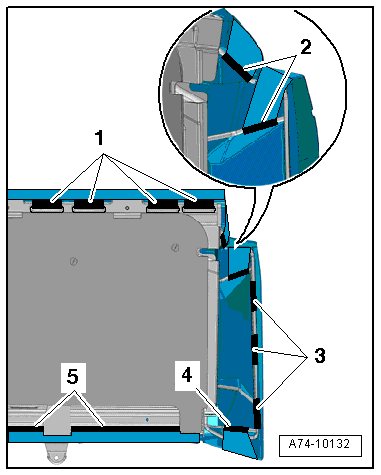

Fig 1: Fixed Rear Seat Backrest

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fixed rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .

-- Remove headrest guides. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .

-- Remove the center armrest, bracket and hinges. Refer to CENTER ARMREST, REMOVING AND INSTALLING, CENTER ARMREST WITH BRACKET AND HINGES, FIXED REAR SEAT BACKREST .

-- Remove the upper piping -1- on the backrest frame.

-- Unclip the side retaining channel -2, 3 and 4- from the backrest frame.

-- Pry off the lower retaining channel -5- from the backrest frame.

-- Disengage the cover from the upper backrest frame hooks -2-.

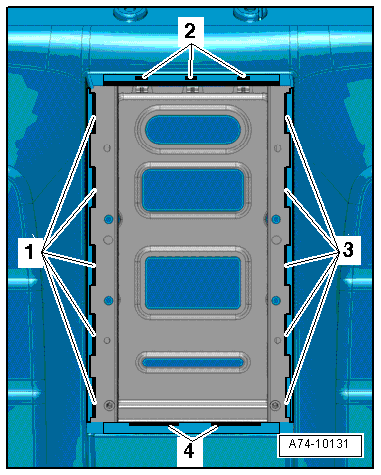

Fig 2: Identifying Backrest Frame Fasteners: Upper Backrest Frame Hooks -2- And Side / Lower Piping -1, 3 And 4-

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the side and lower piping -1, 3 and 4- on the backrest frame.

-- Remove the cover with padding from the backrest frame.
