Seat Pan Cover And Padding, Separating, Seat Pan Without Seat Depth Adjuster: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

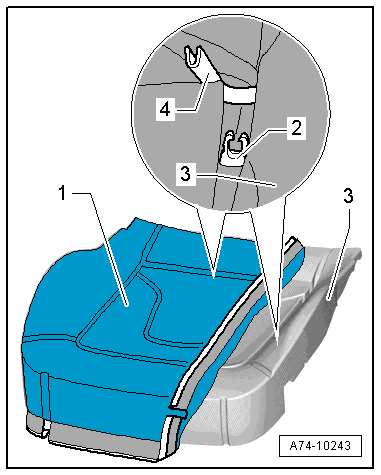

Fig 1: Cover And Padding, Lower Seat Frame Without Seat Depth Adjuster, Separating And Connecting

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover and padding from the seat pan SEAT PAN COVER AND PADDING, REMOVING AND INSTALLING, SEAT PAN WITHOUT SEAT DEPTH ADJUSTER .

-- Remove the rear and sides of the cover -1- from the padding -2-.

-- On vehicles with comfort seats, unclip the retaining channel -3- on the front side of the padding from the clips -4-.

-- Unclip the retaining channel -4- for the cover -1- on the padding -3- from the clips -2-.

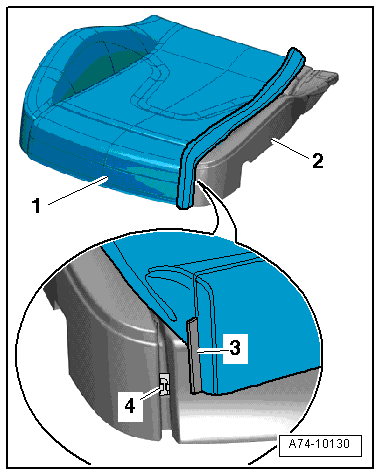

Fig 2: Unclipping Retaining Channel For Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove cover from cushion.

Versions with fabric covers:

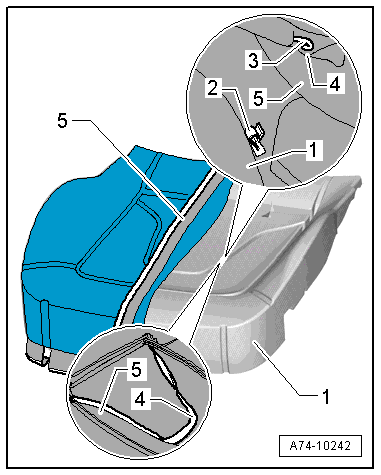

Fig 3: Removing Cushion Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove contour wire -3- that is inserted in the pocket -4- in cover -5- from clips -2-.

-- Remove the cover from the cushion -1-.

Versions with leather covers:

Fig 4: Identifying Contour Wire

Courtesy of AUDI OF AMERICA, LLC

-- Cut through the upholstery clips -3- using pliers -4-.

-- Remove the cover -1- from the cushion -2-.
