Seat Pan Cover And Padding, Removing And Installing, Seat Pan Without Seat Depth Adjuster: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat:

For the manual standard seat, refer to FRONT SEAT, REMOVING AND INSTALLING, MANUAL .
Power standard seat and Comfort seat, refer to FRONT SEAT, REMOVING AND INSTALLING, POWER .

-- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture VAS6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the front backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .

-- Remove the sill side trim retaining bracket.

For the manual standard seat, refer to SILL SIDE TRIM RETAINING BRACKET, REMOVING AND INSTALLING, MANUAL STANDARD/SPORT SEAT .
Power standard seat and Comfort seat, refer to SILL-SIDE TRIM RETAINING BRACKET, REMOVING AND INSTALLING, POWER STANDARD SEAT, WITH OR WITHOUT MEMORY FUNCTION .

-- Versions with LATCH (passenger seat only): Remove the LATCH. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .

-- Disengage the front and side areas -A- and -B- of the cover retaining channel -3-.

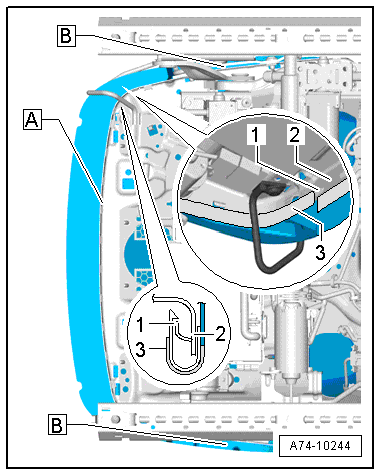

Fig 1: Identifying Cover Retaining Channel (Front And Side Areas)

Courtesy of AUDI OF AMERICA, LLC

-- When disengaging the cover, be careful of the exposed retaining hooks -1- on the edge -2-.

-- Disengage tab retaining channels -1- at both sides of the seat pan -3-.

Fig 2: Identifying Child Seat Anchor

Courtesy of AUDI OF AMERICA, LLC

LATCH child seat anchor -2- removed.

-- Disengage the cover retaining channel -6- in the area -A-.

-- When disengaging the cover, be careful of the exposed hooks -4- on the edge -5-.

-- Remove the cover with padding from the seat pan.
