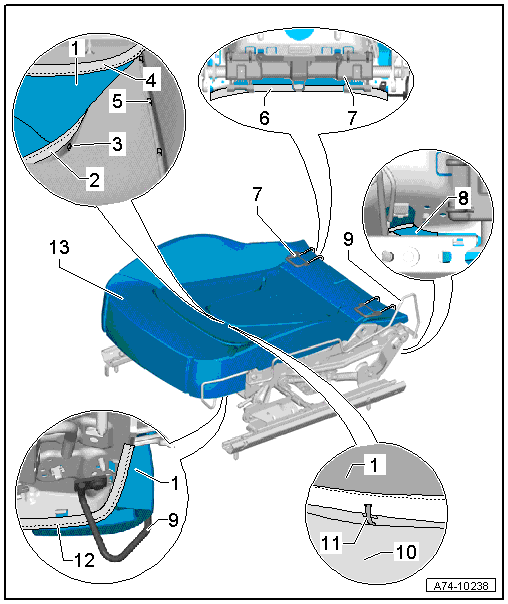

Overview - Seat Pan Cover And Padding, Seat Pan Without Seat Depth Adjuster
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The assembly overview is based on a manual or power standard front seat and comfort seat.
- Cover
- Contour Wire
- Pushed into the cover
- Clipped in -item 3- (only with fabric covers)
- Clip
- Covered in foam padding (only with fabric covers)
- Retaining Channel
- Clipped in the clip -item 5-
- Sewn into cover
- Clip
- Covered in foam padding
- Retaining channel
- Sewn into cover
- For engaging the cover on the rear of the seat pan upper frame
- LATCH Child Seat Anchorage
- Vehicles equipped with: front passenger seat only
- Overview. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
- Cover Strap
- With clamping profile
- Clamping profile sewn into cover
- for engaging the cover on side of the seat pan upper frame
- Retaining Bracket
- for sill side trim
Manual Standard Front Seat
- Removing and Installing SILL SIDE TRIM RETAINING BRACKET, REMOVING AND INSTALLING, MANUAL STANDARD/SPORT SEAT
(retaining bracket not shown in the illustration)
Power standard front seat
- Removing and installing. Refer to SILL-SIDE TRIM RETAINING BRACKET, REMOVING AND INSTALLING, POWER STANDARD SEAT, WITH OR WITHOUT MEMORY FUNCTION .
- for sill side trim
- Cushion
- with wire placed in foam upholstery (only with leather covers)
- Cushion Clip
- Only with leather covers
- For securing the cover to the padding
- Always replace if removed
- Install in same location as before removal
- Retaining Channel
- Sewn into cover
- For engaging the cover on the front and side of the seat pan upper frame.
- Cover
- With padding
- Removing and installing. Refer to SEAT PAN COVER AND PADDING, REMOVING AND INSTALLING, SEAT PAN WITHOUT SEAT DEPTH ADJUSTER .
- Cover, Separating from Padding and Connecting. Refer to SEAT PAN COVER AND PADDING, SEPARATING, SEAT PAN WITHOUT SEAT DEPTH ADJUSTER .
