Overview - Seat Pan Cover And Padding, Seat Pan With Seat Depth Adjuster

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The assembly overview is based on a manual or power sport front seat and super sport front seat.

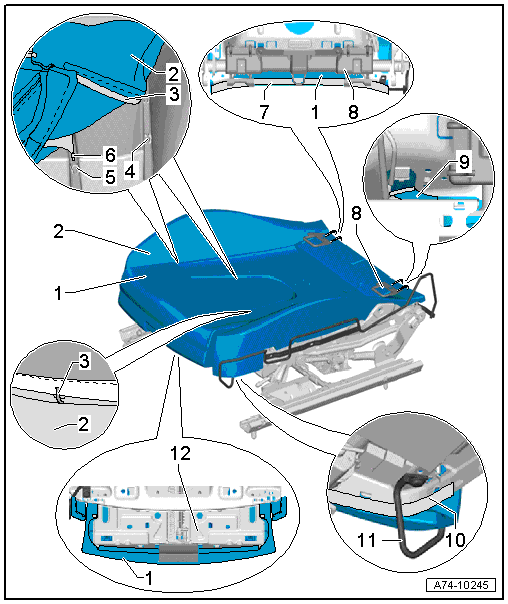

Fig 1: Cover And Padding Overview, Lower Seat Frame With Seat Depth Adjuster

Courtesy of AUDI OF AMERICA, LLC

Cover
- With seat depth adjustment cushion
- Removing and installing. Refer to SEAT PAN COVER AND PADDING, REMOVING AND INSTALLING, SEAT PAN WITH SEAT DEPTH ADJUSTER .
- Cover, Separating from Padding and Connecting. Refer to SEAT PAN COVER AND PADDING, SEPARATING, SEAT PAN WITH SEAT DEPTH ADJUSTER .
Cover
- With the seat cushion
- Removing and installing. Refer to SEAT PAN COVER AND PADDING, REMOVING AND INSTALLING, SEAT PAN WITH SEAT DEPTH ADJUSTER .
- Cover, Separating from Padding and Connecting. Refer to SEAT PAN COVER AND PADDING, SEPARATING, SEAT PAN WITH SEAT DEPTH ADJUSTER .
Retaining Channel
- Clipped in the clip -item 4-
- Sewn into cover
  Cushion clip
- Only with leather covers
- For securing the cover to the padding
- Always replace if removed
- Install in same location as before removal
Clip
- Covered in foam padding
Clip
- Covered in foam padding
- Only with fabric covers
Contour Wire
- Pushed into the cover
- Clipped in the clip -item 5-
Retaining Channel
- Sewn into cover
- For engaging the cover on the rear of the seat pan upper frame
LATCH Child Seat Anchorage
- Overview. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
Tab
- With clamping profile
- Sewn into cover
- For engaging the cover on side of the seat pan upper frame
Retaining Channel
- Sewn into cover
- For engaging the cover on the front and side of the seat pan upper frame, except the seat cushion extension area.
Retaining Bracket
- For sill side trim
  Manual sport front seat
- Removing and Installing, refer to SILL SIDE TRIM RETAINING BRACKET, REMOVING AND INSTALLING, MANUAL STANDARD/SPORT SEAT (retaining bracket not shown in the illustration)
  Power sport front seat and super sport front seat
- Removing and installing. Refer to SILL-SIDE TRIM RETAINING BRACKET, REMOVING AND INSTALLING, POWER STANDARD SEAT, WITH OR WITHOUT MEMORY FUNCTION .
Seat Depth Adjuster
