Overview - Backrest Cover And Padding, Standard Seat/Sport Seat

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The assembly overview is based on a manual or power standard or sport front seat and comfort seat.

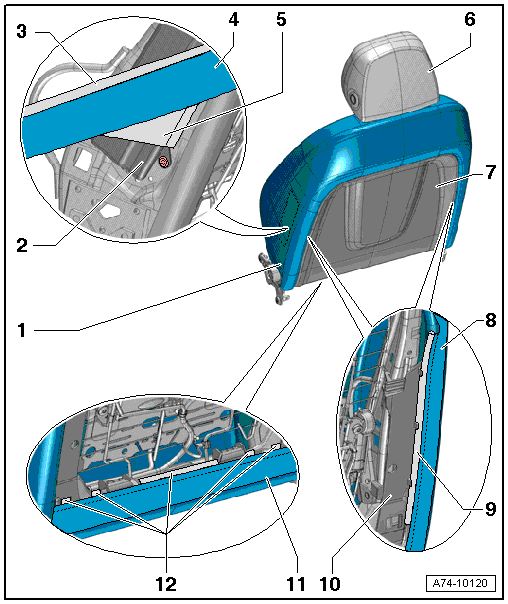

Fig 1: Backrest Cover And Upholstery Overview

Courtesy of AUDI OF AMERICA, LLC

Cover
- with padding
- Removing and installing. Refer to BACKREST COVER AND PADDING, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
- Cover, Separating from Padding and Connecting. Refer to BACKREST COVER AND PADDING, SEPARATING, STANDARD SEAT/SPORT SEAT .
Side Airbag
- Equipment levels
- Removing and installing. Refer to FRONT SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Clamping Strip
- sewn into cover
- To engage the cover in the backrest frame side trim
Cover
Pocket
- for side airbag
- Equipment levels
- sewn into cover
Headrest
Manual
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING, HEADREST WITH SLIDING LOCKING MECHANISM .
  Power
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING, POWER HEADREST .
Backrest Cover
- Version without or with storage net
- Removing and installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, TWO PIECE .
Cover
Clamping Strip
- Sewn into cover
- To engage the cover in the backrest frame side trim
Trim
- For the backrest frame
- Clipped to the backrest frame
Cover
Retaining Channel
- Sewn into cover
- To engage the cover in the backrest frame lower trim
