Backrest Cover And Padding, Separating, Standard Seat/Sport Seat: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

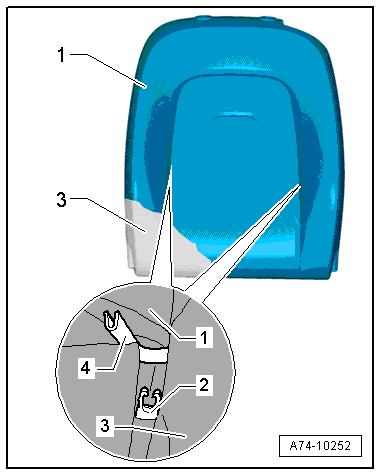

Fig 1: Backrest Cover And Padding, Separating And Connecting

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover padding from the backrest. Refer to BACKREST COVER AND PADDING, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .

-- Remove the cover -1- from the padding -3- as far as possible.

-- Unclip retaining channel -4- from clips -2-.

-- Remove cover from cushion.

Versions with fabric covers:

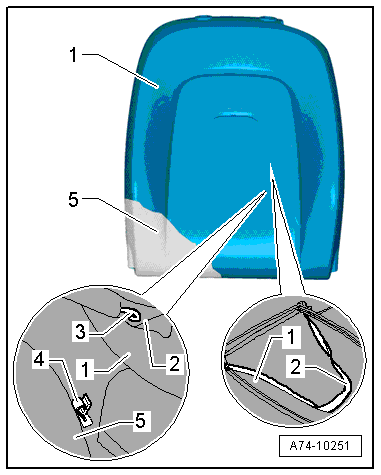

Fig 2: Identifying Contour Wire

Courtesy of AUDI OF AMERICA, LLC

-- Remove contour wire -3- that is inserted into pocket -2- in cover -1- from clips -4-.

-- Remove cover from the Padding -5-.

Versions with leather covers:

Fig 3: Removing Contour Wire -3- And Cushion Cover -1-

Courtesy of AUDI OF AMERICA, LLC

-- Cut through the upholstery clips -3- using pliers -4-.

-- Remove the cover -1- from the cushion -2-.
