Backrest Cover And Padding, Removing And Installing, Standard/Sport Seat: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat:

Standard seat and Sport seat (manual), refer to FRONT SEAT, REMOVING AND INSTALLING, MANUAL .
Standard seat, Sport seat (power) and Comfort seat, refer to FRONT SEAT, REMOVING AND INSTALLING, POWER .

-- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture VAS6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

Vehicles equipped with a mount for a DVD player:

Fig 1: Identifying Guides And Trim

Courtesy of AUDI OF AMERICA, LLC

DVD player removed.

-- Unclip the trim -2- for the connector -arrow-.

WARNING:

Danger of eye injury.

Wear protective eyewear.

-- Drill out the guides -1- and -3- for the DVD player using a 12 mm diameter drill.

Fig 2: Identifying Drill Bit And Dimension -A- = 35 mm On Guide

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of destroying the backrest cover and cushion.

The guides are held in the backrest frame by the retaining tabs -arrows-.
When removing, drill out only up to dimension -a- = 35 mm.

Continuation for all vehicles:

-- Remove backrest panel:

Two section backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, TWO PIECE .
One section backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, ONE PIECE .

-- Remove the head restraints:

-- Remove the front backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .

-- Disengage the lower clamping profile -5- and -6- on the backrest frame trim -4-.

Fig 3: Identifying Lower Clamping Profile

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the upper clamping profile -3- for the cover -1- on the backrest frame -2-.

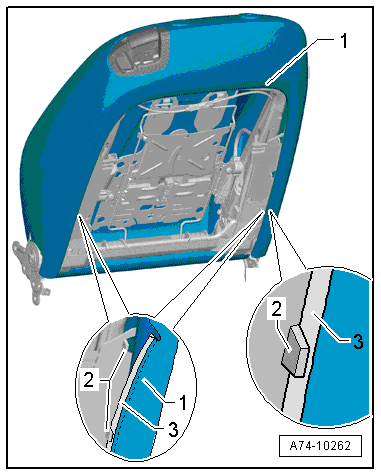

-- Disengage the side retaining strip -3- at the backrest frame trim catches -2-.

Fig 4: Disengaging Side Frame

Courtesy of AUDI OF AMERICA, LLC

-- Remove the padding on the backrest until it is possible to remove the side airbag.

-- Remove side airbag FRONT SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

Vehicles equipped with a Manual Adjustable Seat:

-- Disengage the side airbag from the backrest frame using the hook and out of the pocket sewn in the cover and install it again in the backrest frame.

Versions with Power Seats:

-- Disengage the side airbag from the backrest frame using the hook and leave it in the pocket sewn in the cover.

Continuation for all vehicles:

Fig 5: Locating Velcro (R) Fastener On Lumbar Support

Courtesy of AUDI OF AMERICA, LLC

-- On seats with lumbar support (not comfort seats), separate the padding from the Velcro fastener -3- on the lumbar support -2-. Otherwise the lumbar support will be damaged when removing the hooks -arrows-.

-- Remove the cover and cushion from the backrest frame while guiding the side airbag wiring harness.
