Securing Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

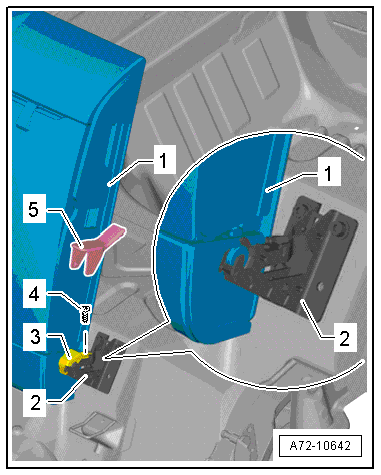

Fig 1: Identifying Securing Bracket From Center Bracket
GWWA72-10642Courtesy of AUDI OF AMERICA, LLC

-- Remove the bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the center bracket cover -5- ; refer to CENTER STORAGE COMPARTMENT COVER, REMOVING AND INSTALLING .

-- Remove the bolt -4-.

-- Remove the securing bracket -3- from the center bracket -2-.
