Rear Seat Backrest, Removing And Installing, Fixed Rear Seat Backrest: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

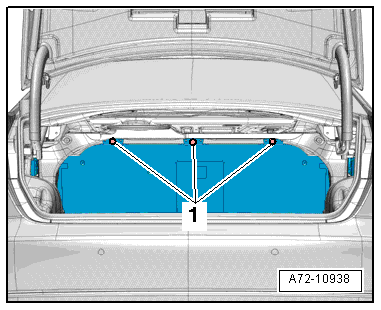

Fig 1: Identifying Rear Seat Backrest

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw in the luggage compartment -1-.

-- Remove the bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

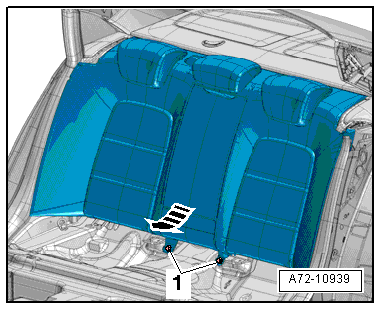

Fig 2: Identifying Rear Seat Backrest Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles equipped with backrest heating: disconnect the backrest heating harness connector.

-- Remove the bolts -1-.

-- Remove the backrest by the lower edge -arrow- and remove it from the vehicle.
