Lockable Armrest Storage Compartment, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

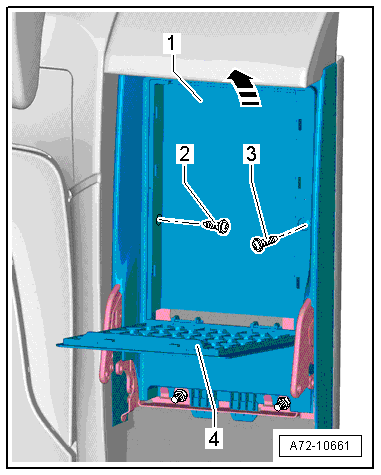

Fig 1: Identifying Storage Compartment

Courtesy of AUDI OF AMERICA, LLC

-- Remove center armrest. Refer to CENTER ARMREST, REMOVING AND INSTALLING, DIVIDED REAR SEAT BACKREST .

-- Open the storage compartment -1- cover -4-.

-- Remove the bolts -2- and -3-.

-- Press the tabs -arrows- on the storage compartment (cover for the lockable storage compartment) -1- in direction of -arrow-, until the retaining tabs disengage from the retainer on the bracket -2-.

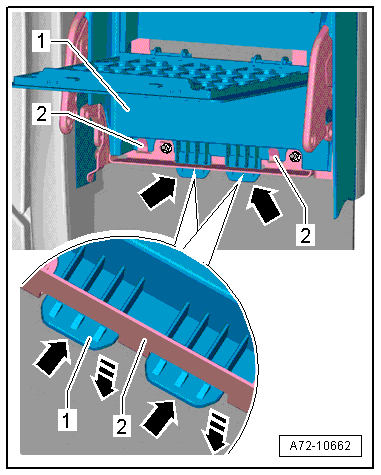

Fig 2: Pressing Tabs On Storage Compartment Disengage From The Retainer On The Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the storage compartment (cover for lockable armrest storage compartment) -1- in the direction of the -arrow- (upward and to the front at an angle) from the bracket.

Fig 3: Identifying Storage Compartment

Courtesy of AUDI OF AMERICA, LLC

-- Remove the storage compartment.
