Center Storage Compartment, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Bench Seat With Center Storage Compartment

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- Disengage the molding -2- from the channel -arrow- in the center storage compartment -1- at the rear and both sides.

-- Unclip the center storage compartment -2- at the seat bench frame -1- -arrows-.

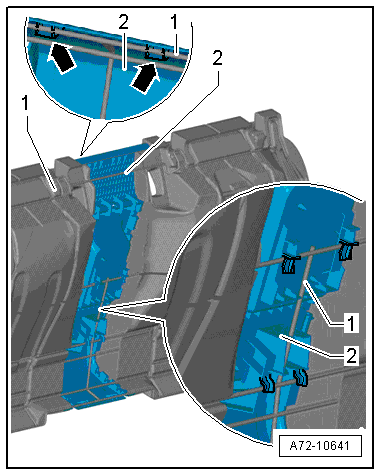

Fig 2: Unclip Center Storage Compartment At Seat Bench Frame

Courtesy of AUDI OF AMERICA, LLC

-- Pull the center storage compartment forward and disengage the tabs at seat bench frame -1-.

-- Remove the center storage compartment from the seat bench frame.
