Sill-Side Trim, Removing And Installing, Power Standard Seat, With Or Without Memory Function: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

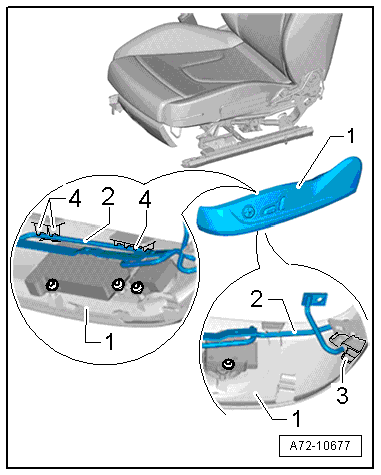

Fig 1: Identifying Trim Sill Side

Courtesy of AUDI OF AMERICA, LLC

-- Bring seat as far up as possible.

-- Remove the expanding rivet -2- from the sill-side trim -1-.

-- Open the clip -3-.

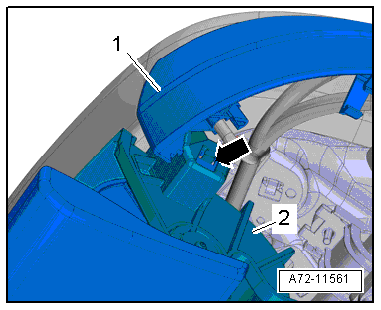

Fig 2: Unclip Trim On Retaining Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Unclip trim -1- on retaining bracket -2-.

-- Disengage the trim in the seat/backrest stop area.

NOTE:

Ensure bracket -4- is not damaged when removing trim.

-- Release the catch -arrow- on the storage compartment -2- and remove the sill-side trim -1- upward.

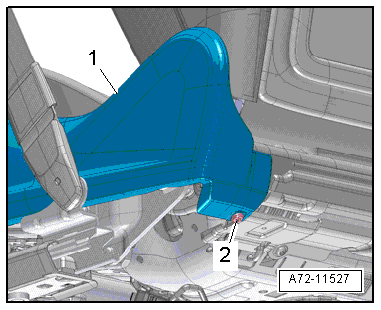

Fig 3: Removing Sill-Side Trim Upward

Courtesy of AUDI OF AMERICA, LLC

-- Pull the sill-side trim slightly forward off the bracket and remove it upward.

-- Pull the trim as far up from the retaining bracket as the electrical wires allow.

-- Disconnect the connectors:

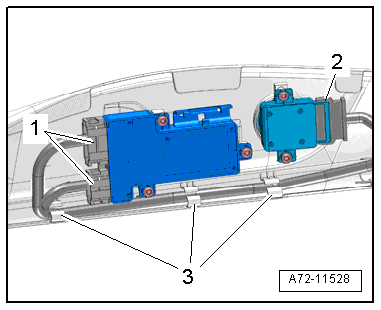

Fig 4: Disconnecting Connectors To Remove Sill Side Trim

Courtesy of AUDI OF AMERICA, LLC

Driver Seat Adjustment Control Head -E470- / Front Passenger Seat Adjustment Control Head -E471-
Driver Seat Lumbar Support Adjustment Switch -E176- / Front Passenger Seat Lumbar Support Adjustment Switch -E177-

-- Free up electrical wire on the bracket -3-.

-- Remove sill side trim.
