Sill Side Trim, Removing And Installing, Manual Standard/Sport Seats: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

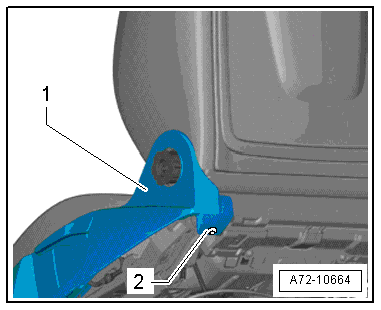

Fig 1: Identifying Sill Side Trim -1- And Expanding Rivet -2-

Courtesy of AUDI OF AMERICA, LLC

-- Bring seat as far up as possible.

-- Remove the backrest adjustment wheel. Refer to BACKREST ADJUSTMENT, REMOVING AND INSTALLING, MANUAL STANDARD SEAT .

-- Remove seat height adjustment handle. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING, MANUAL STANDARD SEAT/SPORT SEAT .

-- Remove the expanding rivet -2- for the sill side trim -1-.

-- Open the clips -4- (quantity: 2).

Fig 2: Identifying Sill Side Trim -1-, Tab -2-, Retaining Bracket -3- And Locking Clips -4-

Courtesy of AUDI OF AMERICA, LLC

-- Unclip trim -1- on retaining bracket -3-.

-- Disengage trim in area of backrest adjustment wheel and seat anchor.

-- Remove the trim forward and up from the retaining bracket.

NOTE:

Make sure the bracket -2- and the tab -2- are not damaged when removing the trim.

Versions with four-way lumbar support:

Fig 3: Disconnecting Connector At Seat Lumbar Support Adjustment Switch

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -4- from Driver Seat Lumbar Support Adjustment Switch -E176- -item. 1- on the sill-side trim -3-.

Procedure for all manual seat versions:

-- Remove sill side trim.
