Seat Forward/Back Adjustment Handle, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

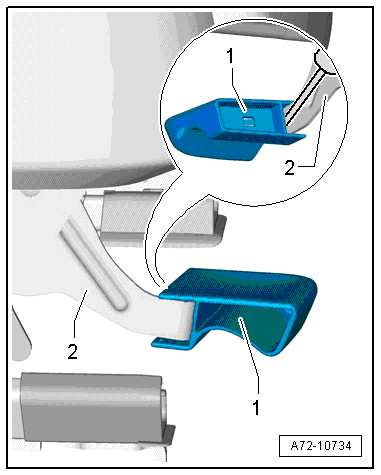

Fig 1: Bringing Headrest Into Lowest Lock Position
GWWA72-10734Courtesy of AUDI OF AMERICA, LLC

-- Bring headrest into lowest lock position.

-- Press the seat forward/backward handle and move the seat as far back as possible.

-- Pry the handle -1- off of the seat forward/back adjustment -2- by using a screwdriver to press down the clip locking spring.
