Seat Angle Adjustment Handle, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

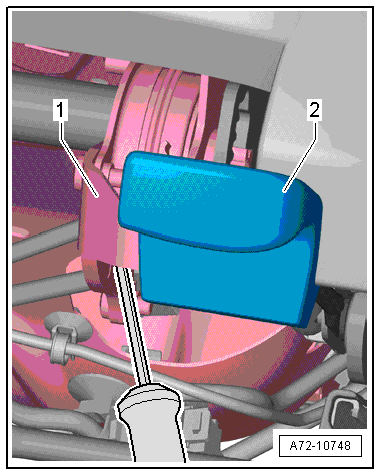

Fig 1: Identifying Tunnel Side Trim Panel
GWWA72-10748Courtesy of AUDI OF AMERICA, LLC

-- Remove tunnel side trim panel. Refer to SILL SIDE TRIM, REMOVING AND INSTALLING, MANUAL STANDARD/SPORT SEATS .

-- Pry the handle -2- off the seat angle adjustment -1- by using a screwdriver to press down the clip locking spring.
