Removing And Installing The Seat Adjustment Control Head: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

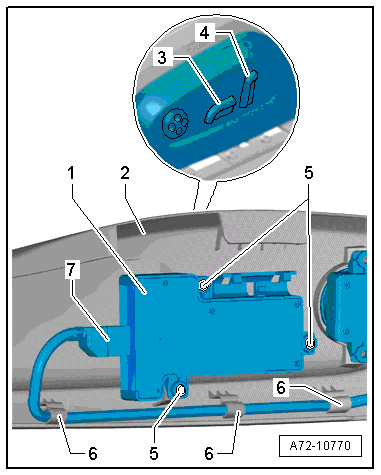

Fig 1: Identifying Seat Adjustment Control Head

Courtesy of AUDI OF AMERICA, LLC

-- Remove tunnel side trim panel. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING, POWER STANDARD SEAT, WITH OR WITHOUT MEMORY FUNCTION .

-- Disengage the wire from the bracket -6-.

-- Disconnect connector -7-.

-- Remove the backrest and headrest adjustment control -3-. Refer to BACKREST AND HEADREST ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .

-- Remove the seat adjustment control head -4-. Refer to SEAT ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .

-- Remove the bolts -5-.

-- Remove the control head -1- from the sill side trim -2-.
