Overview - Seat, Backrest And Headrest Adjustment Control Head

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

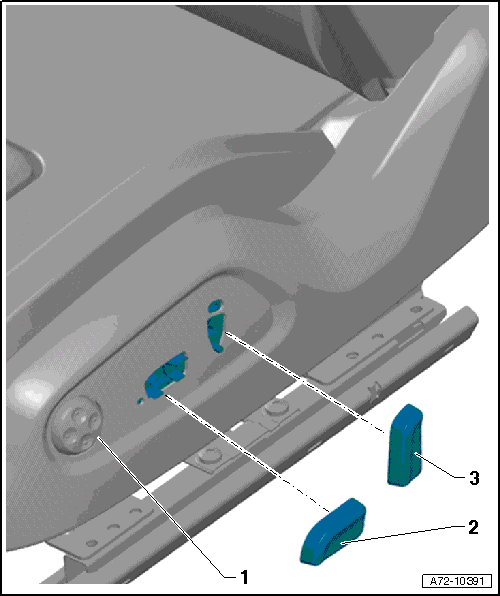

Fig 1: Overview Of Seat, Backrest And Headrest Adjustment Control Head

Courtesy of AUDI OF AMERICA, LLC

Lumbar Support Adjustment Switch
- Driver side: Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Do not disconnect actuator and switch, they can only be replaced as a complete assembly unit.
- Removing and installing. Refer to LUMBAR SUPPORT ADJUSTMENT SWITCH, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/COMFORT SEAT .
Seat Forward/Back, Angle and Height Adjustment Actuator
- Driver side: for Driver Seat Forward/Back Adjustment Switch -E363-, Driver Seat Angle Adjustment Switch -E222-, Driver Seat Height Adjustment Switch -E364-
- Front passenger side: for Front Passenger Seat Forward/Back Adjustment Switch -E64-, Front Passenger Seat Angle Adjustment Button -E334-, Front Passenger Seat Height Adjustment Switch -E365-
- Actuator, Removing and Installing. Refer to SEAT ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .
- Switch and Button, Removing and Installing REMOVING AND INSTALLING THE SEAT ADJUSTMENT CONTROL HEAD
- The switches and buttons listed under -item 3- are located in both the Driver Seat Adjustment Control Head -E470- or Front Passenger Seat Adjustment Control Head -E471- and cannot be replaced separately.
Backrest and Headrest Adjustment
- Driver side: for Driver Backrest Adjustment Switch -E96-, Driver Headrest Adjustment Button -E155-
- Front passenger side: for Front Passenger Backrest Adjustment Switch -E98-, Front Passenger Headrest Adjustment Switch -E170-
- Actuator, Removing and Installing. Refer to BACKREST AND HEADREST ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .
- Switch and Button, Removing and Installing. Refer to REMOVING AND INSTALLING THE SEAT ADJUSTMENT CONTROL HEAD .
- The switches and buttons listed under -item 2- are located in both the Driver Seat Adjustment Control Head -E470- or Front Passenger Seat Adjustment Control Head -E471- and cannot be replaced separately.
