Overview - Seat Ventilation Control Module, Integrated Seat Heating

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

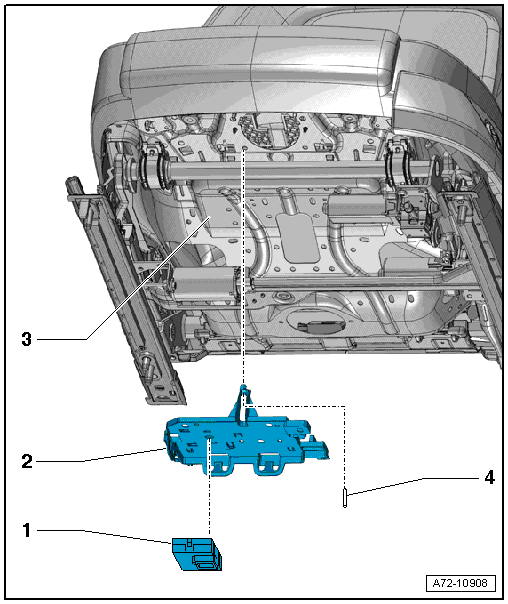

Fig 1: Overview Of Seat Ventilation Control Module, Integrated Seat Heating

Courtesy of AUDI OF AMERICA, LLC

Seat Ventilation Control Module (Integrated in the Seat Heating)
- Versions with driver side seat heating:Left Front Seat Ventilation Control Module -J800-
- Versions with passenger side seat heating:Right Front Seat Ventilation Control Module -J799-
- Clipped with the bracket
- Removing and installing. Refer to RIGHT/LEFT FRONT SEAT VENTILATION CONTROL MODULE -J799- / -J800- (INTEGRATED SEAT HEATING FUNCTION), REMOVING AND INSTALLING .
Bracket
- Removing and installing. Refer to MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE BRACKET, REMOVING AND INSTALLING .
- Engaged and clipped in the seat pan
Front Seat
Pin
- For securing the bracket to the seat pan
