Overview - Seat Height Adjuster And Seat Height Adjustment Handle

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

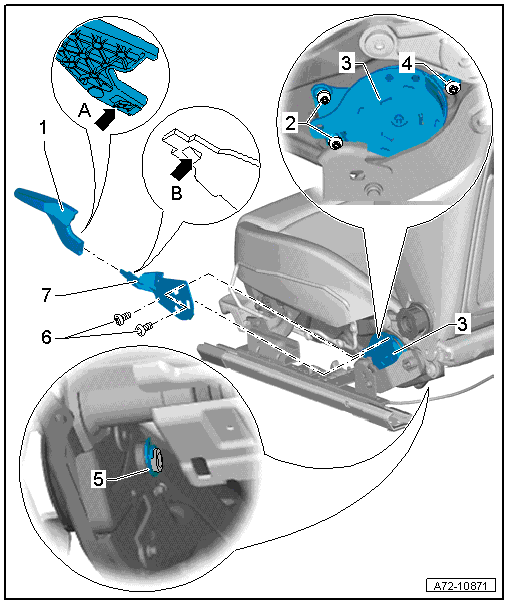

Fig 1: Overview Of Seat Height Adjuster And Seat Height Adjustment Handle

Courtesy of AUDI OF AMERICA, LLC

Seat Height Adjustment Handle
- Removing and installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING, MANUAL STANDARD SEAT/SPORT SEAT .
- With a tab -A- for engaging with the tab -B- on the lever -item 7-.
Bolts
- 6.5 Nm
- Quantity: 2
- Note the different bolt length -item 4-
Seat Height Adjuster
- Removing and installing. Refer to SEAT HEIGHT ADJUSTMENT, REMOVING AND INSTALLING, MANUAL STANDARD SEAT/SPORT SEAT .
Bolt
- 10 Nm
- Note the different bolt lengths -item 2-
Lock Washer
- Always replace if removed
Bolts
- 8 Nm
- Quantity: 2
Lever
- for seat height adjustment handle
- with the tab -B- for locking the seat height adjustment handle -item 1-
