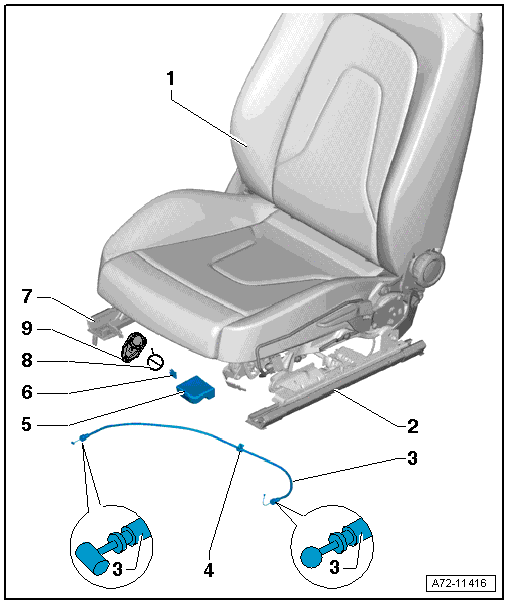

Overview - Seat Forward/Back Adjustment
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
There is no separation between the seat pan lower frame with a seat forward/back adjuster and the seat pan upper frame on the standard front seat (manual).
To repair the seat forward/back adjustment, there is a repair kit available.
- Front Seat
- Seat Forward/Back Adjuster
- Part of seat pan lower frame
- Cannot be replaced separately. Use repair kit.
- When repairing, replace the connecting rod. Refer to SEAT FORWARD/BACK ADJUSTMENT, REPAIRING AND CONNECTING ROD, REPLACING .
- Seat Forward/Back Adjuster Release Cable
- Removing and installing. Refer to SEAT FORWARD/BACK ADJUSTMENT RELEASE CABLE, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
- It is not possible to adjust the release cable
- Clip or Cable Tie
- Handle
- For seat forward/back adjustment
- Removing and installing. Refer to SEAT FORWARD/BACK ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- Clip
- Replace the seat forward/back adjustment handle each time it is removed
- Note location, refer to Installing - "The springs -arrows- (quantity: 2) on the clip -2- must be on the inner side of the lever -1-" (See Figure).
- Actuator
- for seat forward/back adjustment
- Spring
- For lever for seat forward/back adjuster release cable retainer
- Different components for driver and front passenger side
- Removing and installing. Refer to RELEASE CABLE MOUNT LEVER AND SEAT FORWARD/BACK ADJUSTMENT SPRING, REMOVING AND INSTALLING .
- Lever
- For seat forward/back adjuster release cable retainer
- Same part for driver and front passenger seat
- Removing and installing. Refer to RELEASE CABLE MOUNT LEVER AND SEAT FORWARD/BACK ADJUSTMENT SPRING, REMOVING AND INSTALLING .
