Overview - Front Backrest, Manual Standard Seat

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The assembly overview shows the Standard front seat. The front backrest is similar on the other seat versions.

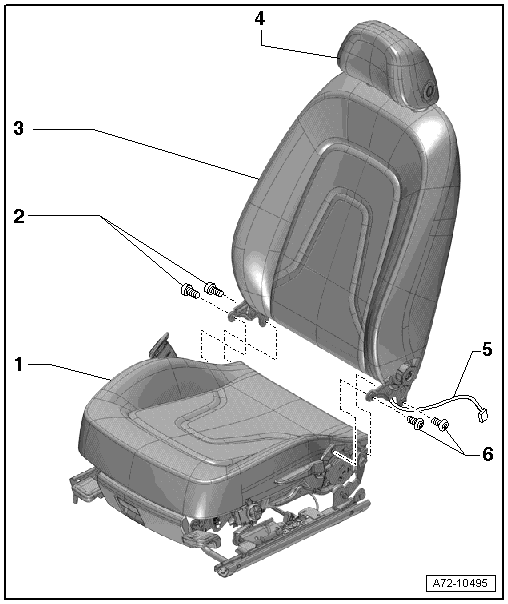

Fig 1: Overview of Front Backrest, Manual Standard Seat

Courtesy of AUDI OF AMERICA, LLC

Seat Pan
Bolts
- 33 Nm
- Self-locking
- Always replace if removed
- Threaded holes for bolts must be cleaned, for example, with a thread tap
Backrest
- Removing and installing. Refer to FRONT BACKREST, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
Headrest
- Manual Headrests, Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING, HEADREST WITH SLIDING LOCKING MECHANISM
- Power Headrests, Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING, POWER HEADREST
Wiring Harness
- Running from the side airbag to the connector station.
- Depending on optional equipment, there may be more wiring harnesses, such as for seat heating, lumbar support
Bolts
- 33 Nm
- Self-locking
- Replace

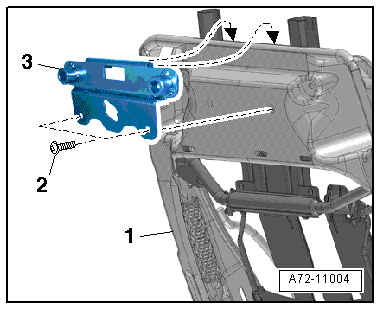

Fig 2: Identifying DVD Player Retaining Plate

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the retaining plate screws -2- to 6 Nm.

Fig 3: Identifying Retaining Plate -3-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nut -2- to 0.4 Nm.
