Overview - Fans, Seat Padding And Backrest
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

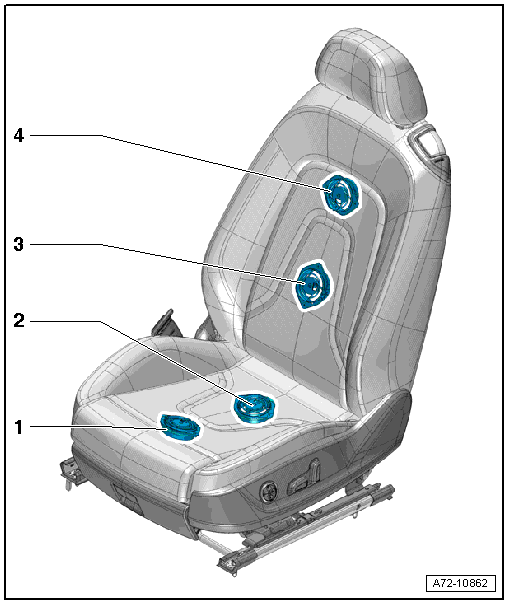

- Seat Cushion Fan
- Driver side: Driver Seat Padding Blower Fan -V390-
- Front passenger side: Front Passenger Seat Padding Blower Fan -V391-
- Removing and installing. Refer to SEAT CUSHION FAN, REMOVING AND INSTALLING .
- Seat Cushion Fan 2
- Driver side: Driver Seat Padding Blower Fan 2 -V419-
- Front passenger side: Front Passenger Seat Padding Blower Fan 2 -V420-
- Removing and installing. Refer to SEAT CUSHION FAN, REMOVING AND INSTALLING .
- Backrest Fan 2
- Driver side: Driver Seat Backrest Blower Fan 2 -V417-
- Front passenger side: Front Passenger Seat Backrest Blower Fan 2 -V418-
- Removing and installing. Refer to UPPER BACKREST FAN, REMOVING AND INSTALLING .
- Backrest Fan
- Driver side: Driver Seat Backrest Blower Fan -V388-
- Front passenger side: Front Passenger Seat Backrest Blower Fan -V389-
- Removing and installing. Refer to UPPER BACKREST FAN, REMOVING AND INSTALLING .
- Bolt - 1.5 Nm
- Cover grille
- Seal
- Seat cushion fan
