Overview - Backrest Cover, One Piece Backrest Cover
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

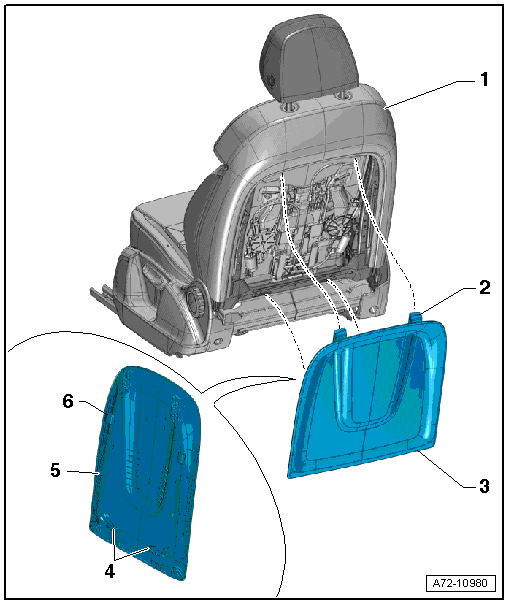

The assembly overview shows the Standard front seat. The backrest cover on the other seat versions is identical.
The illustration shows a backrest cover without a storage net.
- Front Seat
- Upper Hook
- Quantity: 2
- Backrest Cover
- Equipment levels
- Removing and installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, ONE PIECE .
- Lower Hook
- Quantity: 2
- Hook, Bottom Side
- Quantity: 2
- Tab, Upper Side
- Quantity: 2
