Lower Backrest Fan, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

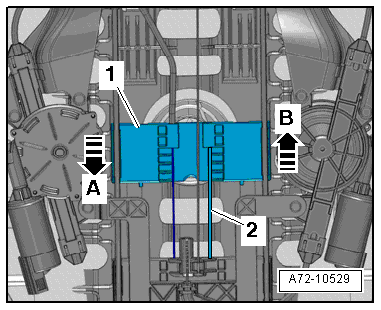

Fig 1: Identifying Slider -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove backrest panel:

Two section backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, TWO PIECE .
One section backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, ONE PIECE .

-- Adjust the lumbar support to the highest curve while moving the slider -1- all the way down -arrow A-.

NOTE:

Ignore -item 2-.

-- Disconnect the connector -1-.

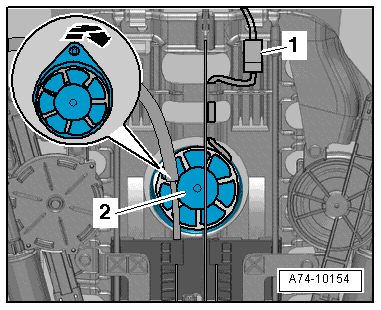

Fig 2: Backrest Fan -2- Connector -1-

Courtesy of AUDI OF AMERICA, LLC

-- Carefully tilt the backrest fan -2- out of the backrest padding -arrow-.
