Headrest, Removing And Installing, Power Headrest: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

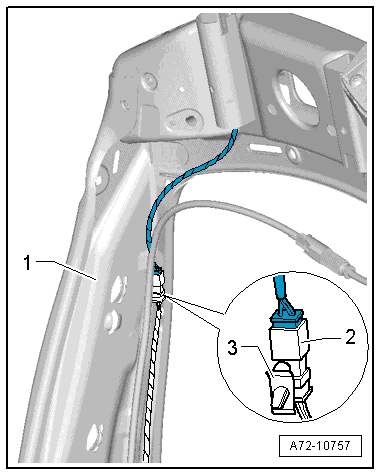

Fig 1: Disconnecting Power Headrest Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove backrest panel:

Two section backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, TWO PIECE .
One section backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, ONE PIECE .

-- Unclip the cable tie clip -3- on the backrest frame -1-.

-- Disconnect the connector -2-.

-- Reach under the backrest cover and find the release button pressure point -3-.

Fig 2: Finding Release Button Pressure Point

Courtesy of AUDI OF AMERICA, LLC

-- Press the release button forward in the direction of the -arrow-.

-- Hold the release button -3- down in this position.

-- Remove the headrest -2- from the guides -1- and -4-.

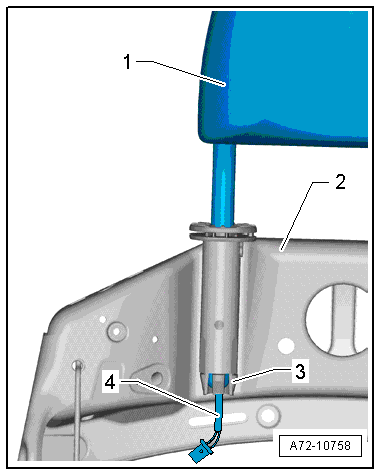

Fig 3: Identifying Headrest Components

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

When removing the headrest, make sure the connector on the headrest side does not get stuck in the headrest guides or in the fixed cover cap.

-- When removing the headrest -1-, guide the wire with the connector -4- through the headrest guide -3-.

2 -

Backrest frame
