Backrest Frame Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Backrest Frame Trim

Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, TWO PIECE .

-- Remove the backrest padding until the two retaining tabs -arrow A- and -arrow B- on the backrest frame trim -2- can be seen from behind.

-- Disengage the retaining tabs -arrow A- and -arrow B- on the backrest frame trim -2- at the backrest frame -1-.

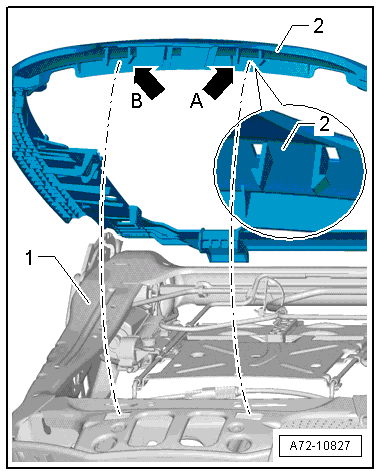

Fig 2: Disengage Retaining Tabs And Backrest Frame Trim

Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest frame trim -2- upward from the backrest frame -1-.

Fig 3: Identifying Backrest Frame Trim Upward From Backrest Frame

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the lower seats -arrows- (quantity: 2) on the backrest frame.

-- Remove the backrest frame trim from the backrest frame.
