Backrest Cover, Removing And Installing, Two Piece: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Disengaging Side Lower Hooks -3- For Backrest Cover -2- From Backrest Frame Trim -1-

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Wear protective gloves to avoid injury from burrs that may be on the backrest cover.

-- Disengage the side lower hooks -3- (quantity 2) for the backrest cover -2- from the backrest frame trim -1-.

-- Press the backrest cover -1- toward the center of the seat in the direction of -arrow A-.

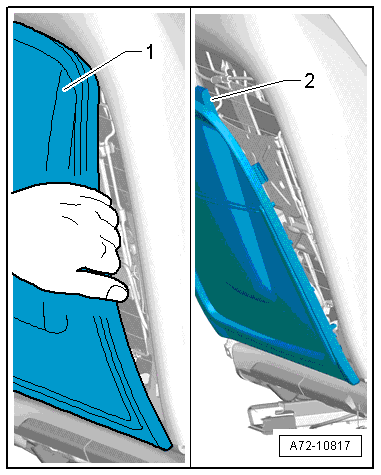

Fig 2: Pressing Backrest Cove Toward The Center Of Seat

Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest cover back in the direction of -arrow B-.

-- Do the same on the opposite side.

-- Disengage the side backrest cover -2- -arrows A, B, E and F-.

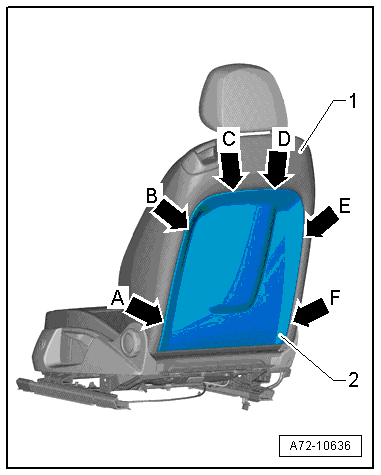

Fig 3: Disengage Side Backrest Cover

Courtesy of AUDI OF AMERICA, LLC

-- Reach behind the backrest cover -1- and remove the right side from the backrest -2-.

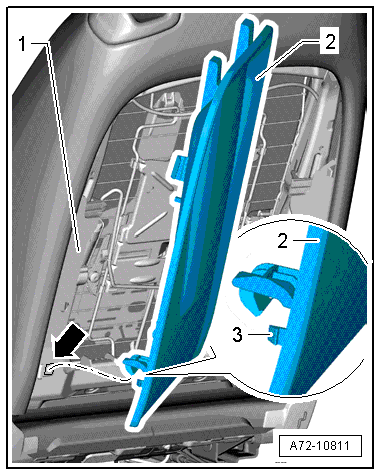

Fig 4: Backrest Cover -1-, Backrest -2-

Courtesy of AUDI OF AMERICA, LLC

-- Do the same to the opposite side of the backrest cover -1-.

-- Loosen the side retaining hooks -3- or -5-. Refer to Figure.

-- Remove the backrest cover -1- further and bend it until the upper hooks -2- disengage from the backrest frame.

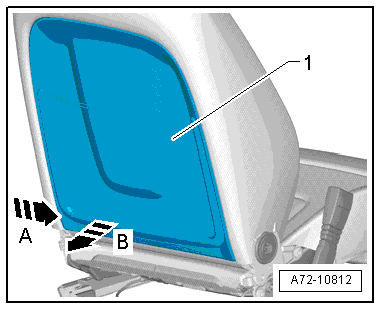

Fig 5: Identifying Backrest Cover Further And Bend It Until Upper Hooks Disengage

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The illustration does not show the upper hooks.

-- Tip the backrest cover -1- back slightly.

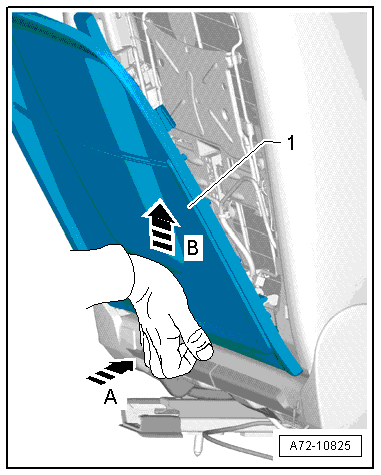

-- Press the backrest cover -1- down in the direction of -arrow A-.

Fig 6: Pressing Backrest Cover Down

Courtesy of AUDI OF AMERICA, LLC

-- Lift the backrest cover in the direction of -arrow B- and remove it from the backrest frame.
